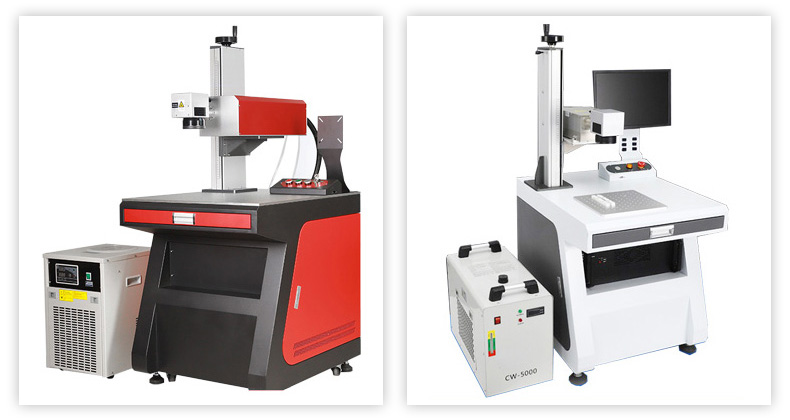

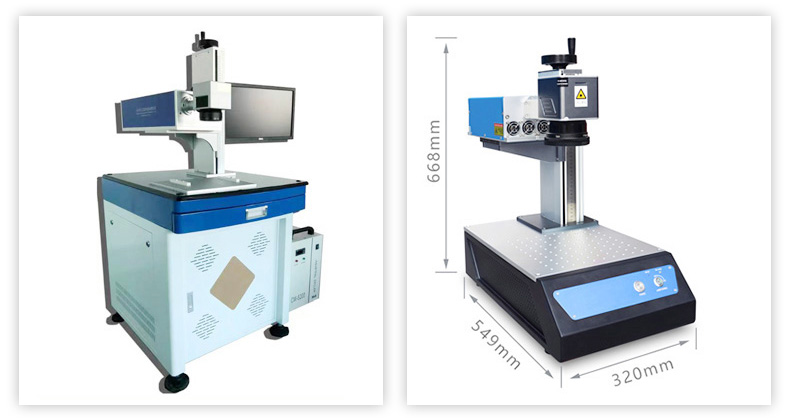

YK-D-UVL紫外激光打標機

YK-D-UVL Laser Marking Machine

1產品特點

■屬于冷激光，特別適合于微加工

■整機風冷卻方式

■新型半導體激光源，電光轉換效率高，使用壽命長

■三階腔內倍頻技術，光斑小，基本沒有加工熱影響

■整機能耗低，免維護

Product features

●Cold laser, particularly suitable for micromachining

●Air cooling

●New semiconductor laser source , high electricity-laser exchange ratio, long using lifetime

●Third-order intracavity frequency doubling technology , tiny spot, basically no heat affected processing

●Low power consuming, maintenance free, stable performance

2技術參數

輸出功率     Laser power     2W/3W/5W/7W

激光波長     Wavelength     355nm

光束質量     Beam quality    ㎡＜1.3

標刻范圍     Marking scope   65×65/110×110/160×160mm(可選optional)

標刻速度     Marking speed   ≤7000mm/s

線寬         Min. line width     0.01mm

字符         Min. Character    0. 1mm

脈寬         Pulse width         20ns(20KHz)

脈沖能量     Pulse energy      150uj(20KHz)

脈沖重要頻率     Repeat precision    10-200KHz

供電電源     Power supply      220V±10% 50Hz/12A

整體功耗     Power consumption       400W

工作溫度     Working temperature  5℃--35℃

3適用材料

電器材料、包裝材料、玻璃材料的冷加工

Cold machining of electric materials, packaging materials and glass materials

4適用領域

醫藥、食品、低壓電器、LED晶元、觸摸屏ITO膜、塑料等行業

Medicine, food, low voltage electric appliance, LEO wafer，touch screen ITO film, plastic and so on

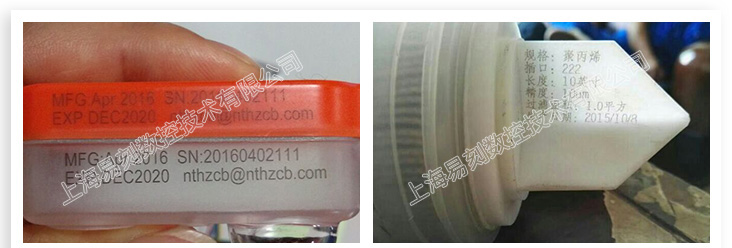

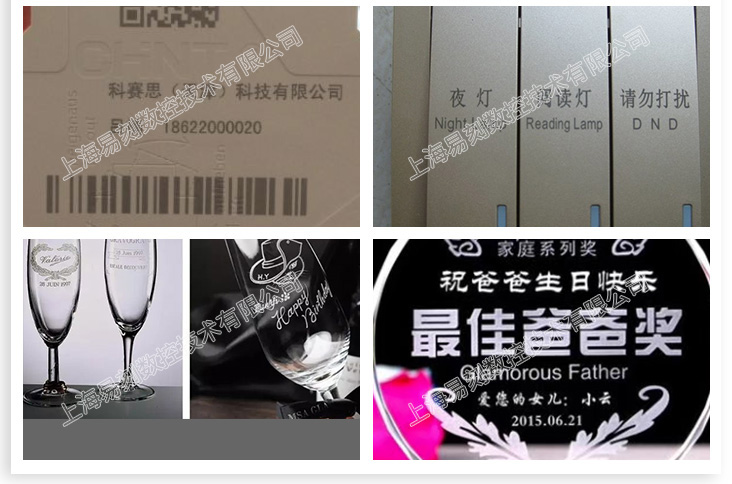

5打印效果
