YK-D-GL綠光激光打標機

YK-D-GL TYPE Green Laser Marking Machine

1產品特點

■特別適合于微加工

■整機風冷卻方式

■新型半導體激光源，電光轉換效率高，使用壽命長

■倍頻轉換效率高，較窄的激光脈沖寬度

■整機能耗低，免維護，可靠性高

Product features

●Particularly suitable for micromachining

●Air cooling

●New semiconductor laser source , high electricity-laser exchange ratio, long using lifetime

●Hgh efficiency frequency doubling conversion, narrow laser pulse width

●Low power consuming, maintenance free, stable performance

2技術參數

輸出功率      Laser power     6W/12W

激光波長      Wavelength      532nm

光束質量      Beam quality    ㎡＜1.3

標刻范圍      Marking scope   65×65/110×110/160×160mm(可選 optional)

標刻速度      Marking speed   ≤7000mm/s

小線寬      Min. line width   0.01mm

小字符      Min. character    0.1mm

脈寬      Pulse width      20ns(20KHz)

脈沖能量      Pulse energy     150μj(20KHz)

脈沖重復頻率  Repeat precision 10-200KHz

供電電源      Power supply    220V±10%  50Hz/12A

整機功耗      Power Consumption  400W

工作溫度      Working temperature  5℃--35℃

3適用材料

大多數金屬和非金屬的表面加工和鍍層薄膜的加工；玻璃和水晶制品的表面雕刻。

Surface processing and coating film processing of most metal and non-metal materials. Surface engraving of glass and crystal products.

4適用領域

光學器件，手機屏，LCD屏，汽車玻璃，PCB板，陶瓷，硅片，塑料等行業

Optical device, mobile phone screen, LCD screen, car glass, PCB board, ceramic, silicon, plastic and so on

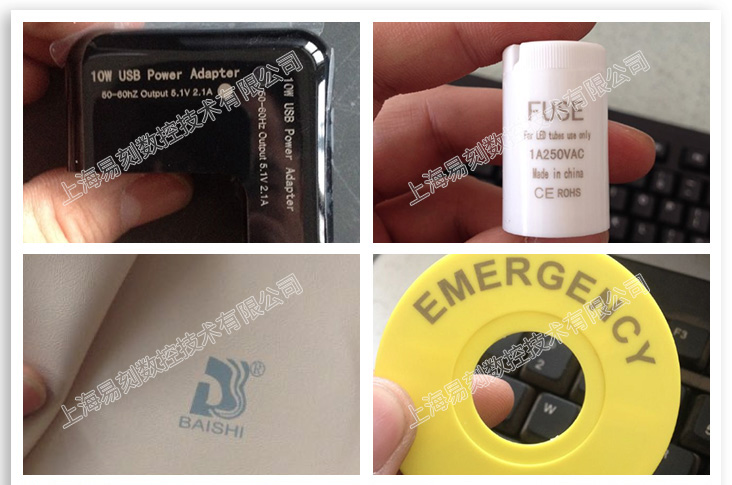

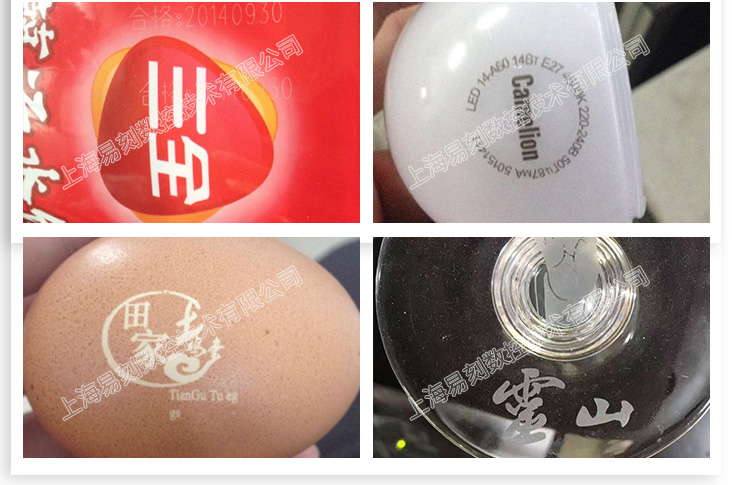

5打印效果
